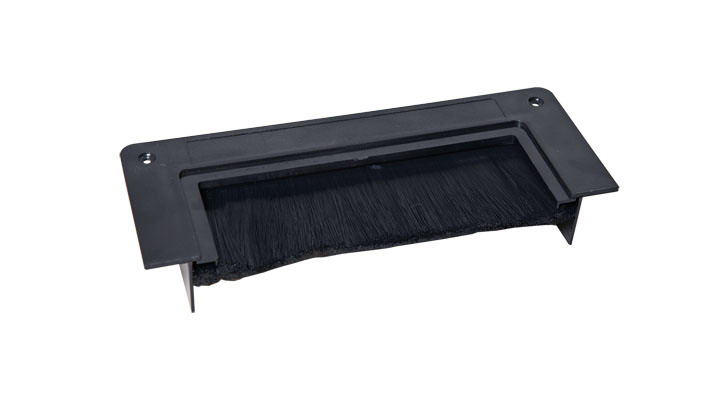

105x280mm brush grommet

105x280mm brush grommet

Short Description:

The UPFLOOR cable grommet fits into the access floor panel to provide a safe,neat and effective outlet for electrical power leads, telecom cables, data cables and vacuum hoses. The cable grommet fits all UPFLOOR access floor panels and is quick and easy to install, easy to use during servicing and manufactured from a very durable plastic.

The cable grommet can be installed within all UPFLOOR access floor panels whether in a carpeted panel application or a high pressure laminate panel application.



Any requirement of technical details/test report/certificate/new products and etc, Please ask details through company sales by email:  susan@upinfloor.com


Product Detail

Product Tags

Product Details

(1) The Grommet achieve 100% bypass airflow sealing in areas undisturbed by cable penetrations for static pressure of 0.1 inch water.

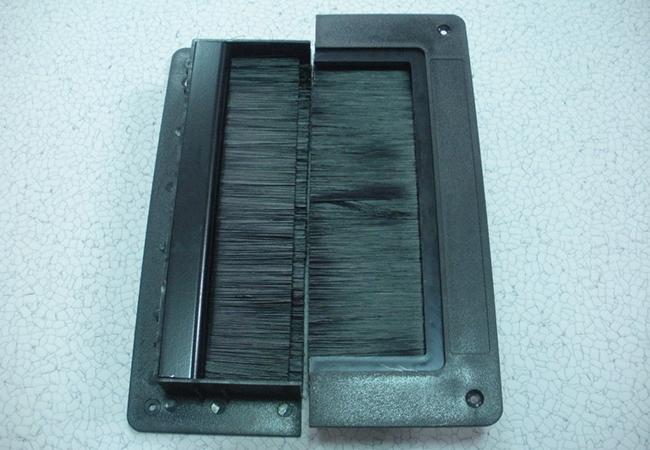

(2) Split Integral with 2 opposing overlapping arrays.
(3) Nylon Grade 6 filament and 1220pcs per cross sectional cm.
(4) 56X229mm available cable opening.
(5) 105.5WX281.0Lx37Hmm overall size and 82X240mm panel cutout size. 105.5WX281.0Lx37Hmm.
(6) Frame material ABS.
