55% Alu Grate Panel

Short Description:

The perforated panels will used along with all bolt on stringer raised floors systems. The damper delivers and controls the flow of cool underfloor conditioned air into computer/equipment/Data center room environments that are typically producing high amounts of heat.

The UPFLOOR perforated panels are designed and manufactured for use with UPFLOOR’s complete range of access floor systems. They can be specified for use with either Steel Access Floor Systems or Woodcore/Calcaium Sulphate core Access Floor Systems.

Any requirement of technical details/test report/certificate/new products and etc, Please ask details through company sales by email: susan@upinfloor.com

Send email to us

Product Detail

Product Tags

Specification

• Die cast aluminum structure
• Non-combustible material
• 56% open area
• Available with coatings
• Top surface adjustable damper available
• Removable with portable lifting device
• Load performance-see table below

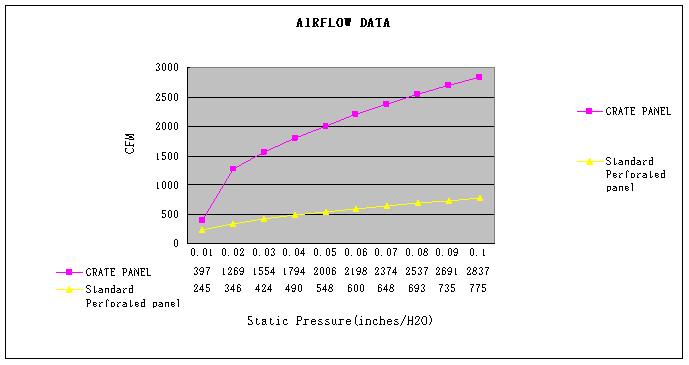

• Airflow data-see chart below

• Fitting for various of access floor panels
• 600mm or 24 inches square
• Panel weight: 11kg/pc bare
• Panel height: 41mm
• The stringer width requirement: 21mm wide for both 60cm and 24 inches system

sfaf

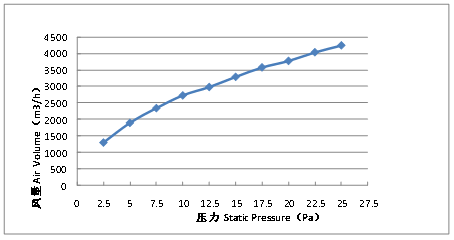

Air Volume And Air Velocity

∆Ps Static pressure box（Pa）	Air volume（m3/h)	Wind speed（m/s)
2.5	1295	8.4
5	1892	12.1
7.5	2340	15.1
10	2726	17.5
12.5	2980	19.6
15	3289	22.1
17.5	3576	23.2
20	3774	24.8
22.5	4035	26.4
25	4245	27.6
