pedestal

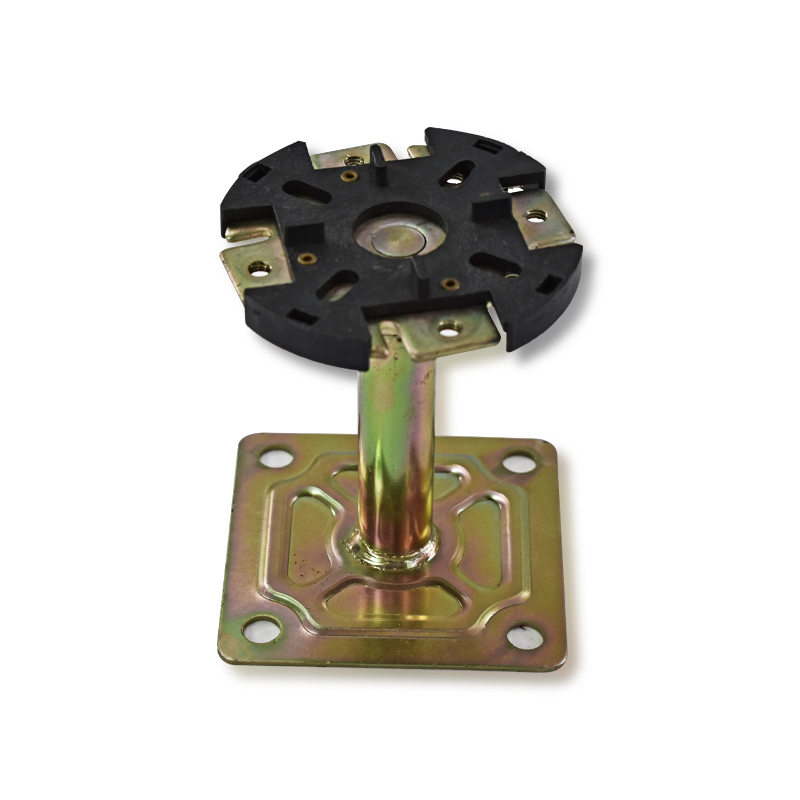

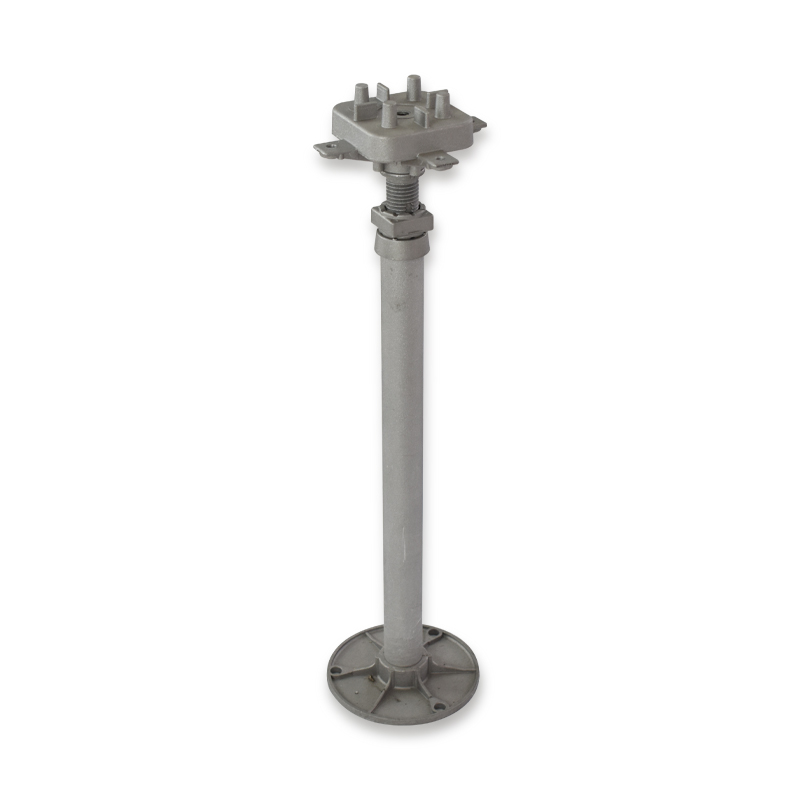

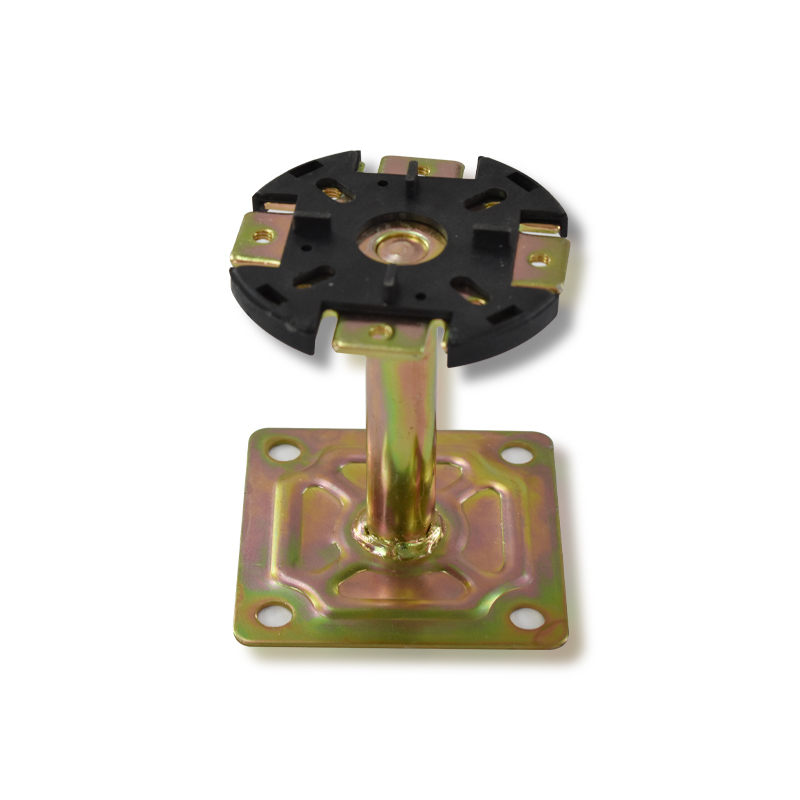

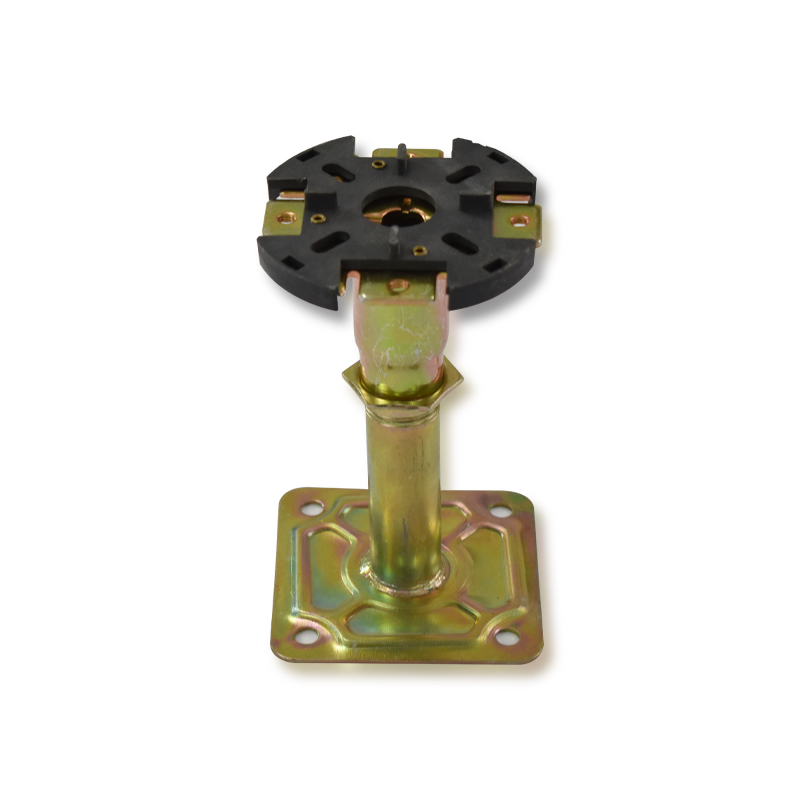

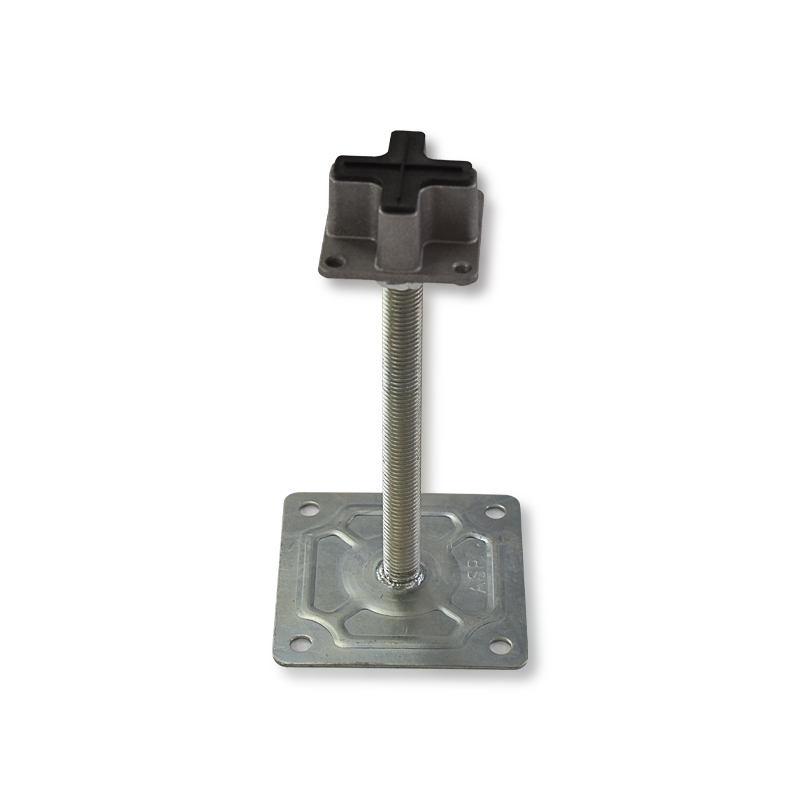

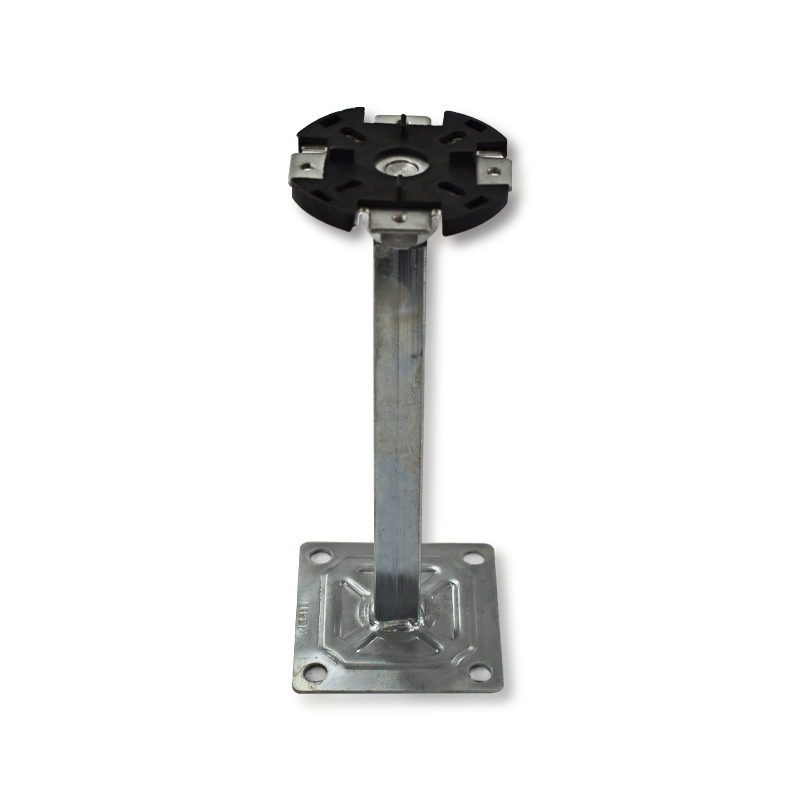

Pedestal Head:

1. steel round flat head with location gasket for free standing with panel. Zinc plated steel stud and anti vibration nut assembled and detent feature. The steel stud will be sized to accommodate existing pedestal base.
2. Flat steel pedestal head will accommodate stringers. Zinc plated steel stud and anti vibration nut assembled and detent feature. The steel stud will be sized to accommodate existing pedestal base.

Pedestal Base:

The pedestal base must accommodate the pedestal base steel stud referred to above. FFH = 50mm to 2,500mm

Pedestal Gasket:

A Freelay Pedestal Head Gasket of suitable rubber construction with permanent attachment to the Cornerlock pedestal head is required. This will provide an isolation barrier between panel and pedestal head. The gasket materials will have an electrical resistance of <104 Ω
