Single-Post Pneumatic Lifting Desk Zt565
Material:
The table top is made of Density Fiberboard, with high quality steel stand.
Feature:
1. Height adjustable:785-1095mm;
2. Surface is smooth, exquisite
3. Moisture-proof, resistance to deformation
4. Anti-scratch, easy to clean

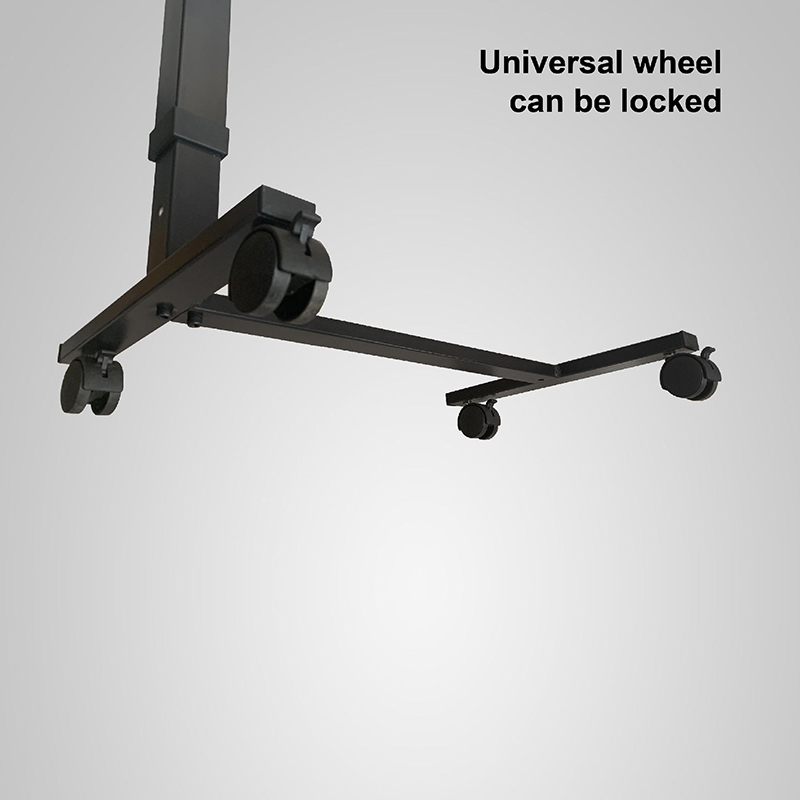

5. with castors, moving easily.
Description:
Density: ≥680kg/m3

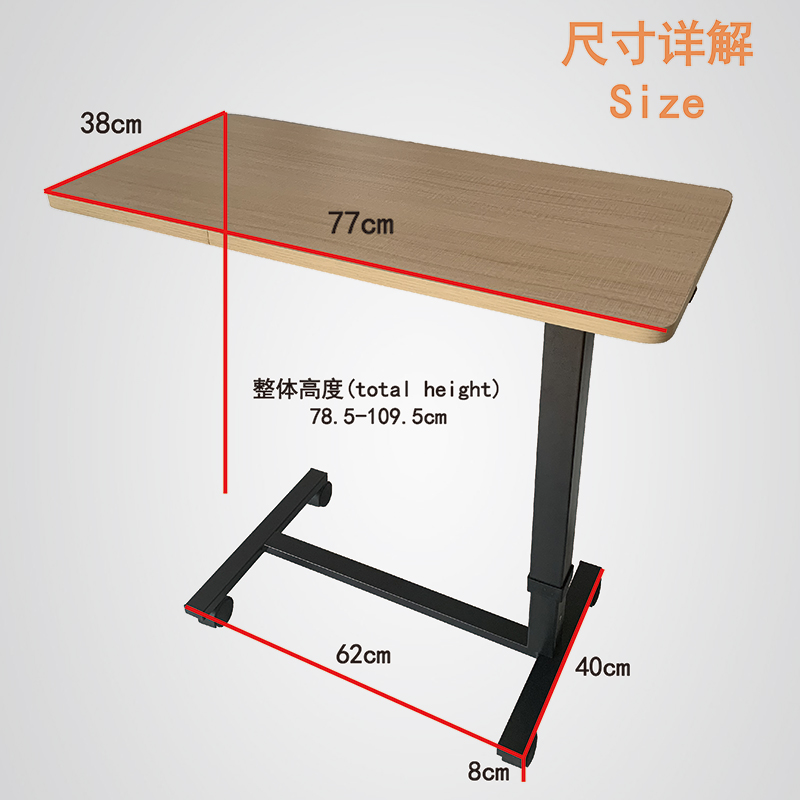

Dimension: L770*W380*H785-1095mm
colour: as picture

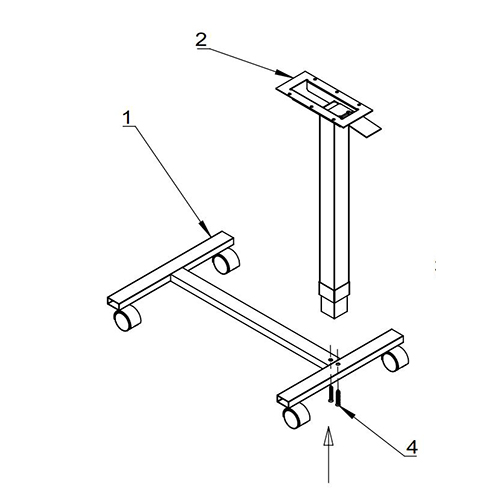

Step 1：
Fix the screw(base frame) in the
direction of the arrow shown in
the figure
Step 2：
Fix the screw(table top) in the
direction of the arrow shown in
the figure.

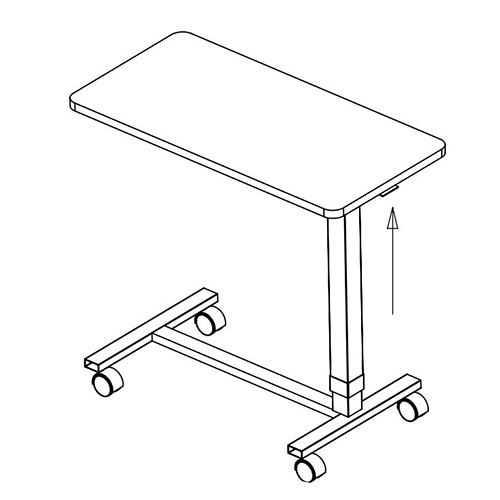

Step 3：
Press and hold it by hand in the direction
of the arrow shown in the figure to adjust
the appropriate height and release
Safty & Maintenance：
1.check the tightness of the screws and the stability of the frame before use.
2.add proper amount of lubricating oil to the rotating parts regularly.
3.clean and disinfect regularly, store it in dry and ventilated environment.
| No. | Component | Dimensio | n Qty |
| 1 | Base frame | 1 | |
| 2 | Square tube support | 1 | |
| 3 | Table top | 1 | |
| 4 | Screw(base frame) | M8*45 | 2 |
| 5 | Screw(table top) | φ5*12 | 6 |
