Best Steel Cement Panel Manufacturer and Factory

Steel Cement Panel

Short Description:

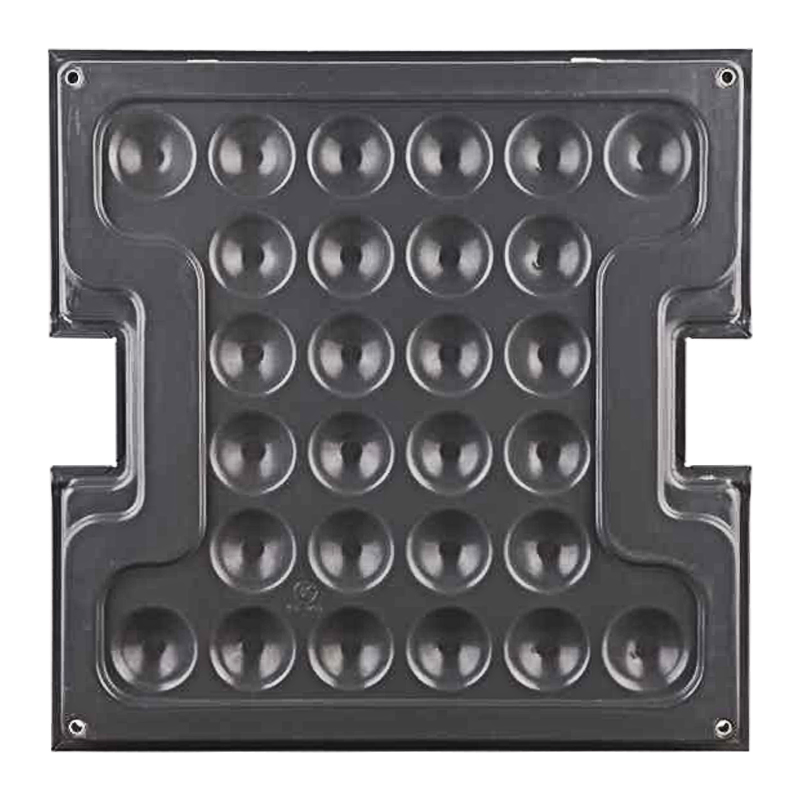

The panel will provide a stable platform suitable for the general office & equipment room environments. The floor panels will be constructed utilising daw quality steel for the bottom pan and full hard steel for the top sheet. The panel will be fully spot welded together(minimum 64 welds in each dome and 20 welds along each flange).

The panel will be die cut to size, phosphate coated (or equivalent) and epoxy powder coated to provide adequate corrosion protection.

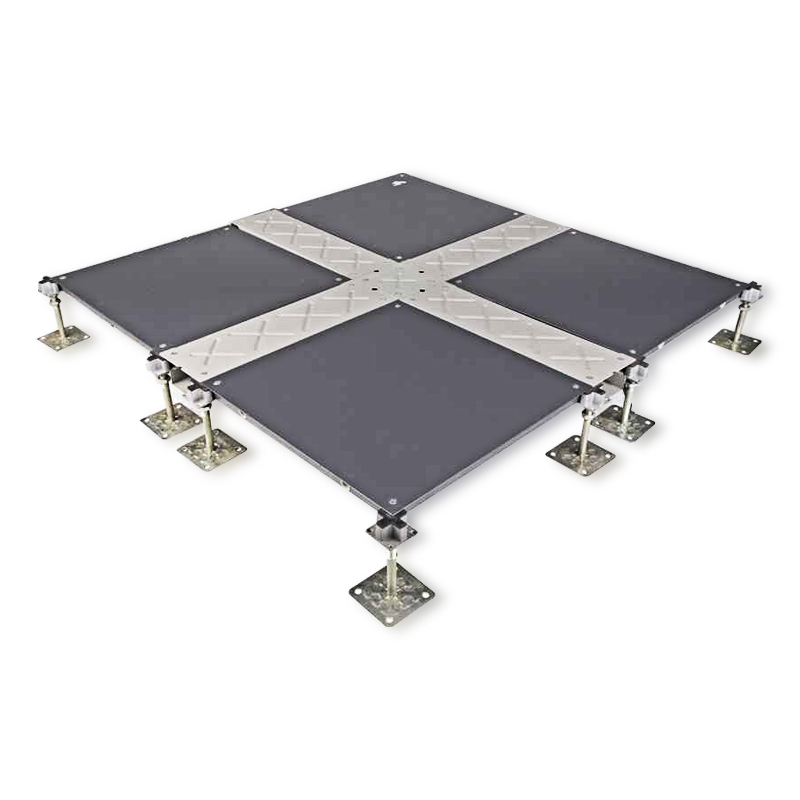

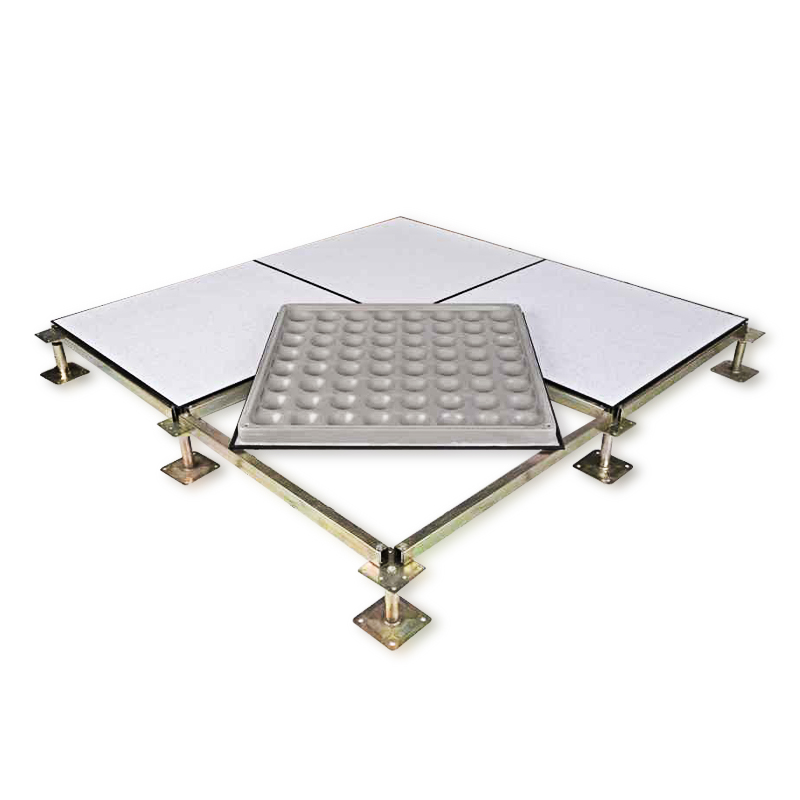

The panels will be corner locked into place providing equipotential bonding or they can be gravity held with or without stringers

The raised access floor system will be capable of withstanding various duty static/ dynamic loads experienced in the general office and equipment environments.

Any requirement of technical details/test report/certificate/new products and etc, Please ask details through company sales by email: susan@upinfloor.com

Send email to us

Product Detail

Product Tags

Product Details

Key performance characteristics:
-Panel size 600x600x35m or 610x610x35mm or 500x500x27mm
-A welded structural steel assembly
-Top finish High pressure laminate, conductive PVC, vinyl, plywood tile, composite wood panel, porcelain tile, terrazzo and etc.
-Formulated cementitious fill
-Powder coated epoxy finish
-Stability：remain stable and not alter the performance characteristics when exposed thermal and humidity change.
-All componets shall be protected against corrosion with the manufactures standard factory applied protective finishes.

System Performance Criteria

Panel type	conc.load	uniform load	ultimate load	safety factor	rolling load	impact load
SC35-FS800	3600N	19800N	10800N	3	10 times 3000N 10000 times 2200N	670N

Panel type	conc.load	uniform load	ultimate load	safety factor	rolling load	impact load
SC35-FS1000	4500N	23300N	13500N	3	10 times 3600N 10000 times 3000N	670N

Panel type	conc.load	uniform load	ultimate load	safety factor	rolling load	impact load
SC35-FS1250	5600N	33100N	16800N	3	10 times 4500N 10000 times 3600N	670N

Panel type	conc.load	uniform load	ultimate load	safety factor	rolling load	impact load
SC35-FS1500	6700N	42600N	20100N	3	10 times 5600N 10000 times 4500N	670N

Panel type	conc.load	uniform load	ultimate load	safety factor	rolling load	impact load
SC35-FS2000	8900N	49800N	26700N	3	10 times 6700N 10000 times 5600N	780N

Applications

Create prefect data center or general office environment by UPIN’s raised access floor system. Widely used in airport, bank, office buildings, school, laboratories, hospitals, factories, clean rooms and etc.

The raised access floor will be subjected to general office and equiment room environments. Work stations, partitions, racking and filing system

will generate static loads. Dynamic loads will be alligned with frequent foot traffic at lift lobbies,corridors,walkways and infrequent rolling loads.

Benefits

-Economical
-light weight
-Excellent load bearing and high level of stability
-easy-to-install
-provide a variety of open area percentage by perforated panel and grate panel.
-Power and Data Management Flexibility
-Freedom with design and layout options
-Environmentally friendly: low VOCs, recycle content
-Fire resistant.The performance requirements will be in accordance with British Standard 476: Part 7:1997 and Part 6:1989
